The Job
This seawall curtain grouting project is located at a secure facility in North Carolina. It is owned and maintained by the federal government.
The Challenge
The facility is located along a tidal waterway, and has a pre-cast concrete panel seawall protecting it from the adjacent waterway. The soils in the area are beach sand. Numerous sinkholes developed over time at the top of the seawall, which is just over half a mile long. The structure extends up to 17 feet from the cast-in-place cap down to the mud line, with mean high tide roughly six feet below grade. In other areas, the mud line is as close as five feet to below water. The seawall retains an airfield taxiway, runway, and extensive sensitive other infrastructure elements.
The original design for the seawall repair called for performing jet grouting along the entire length of the wall. This caused concerns from an environmental perspective, due to the difficulty in containing highly mobile material behind the wall, and also the equipment required for jet grouting, given extensive sensitive structures adjacent to the wall.
The Solution
CJGeo worked with the general contractor to analyze two different alternative repairs:
- permeation grouting with an acrylic grout
- curtain grouting with geotechnical polyurethane
Based on cost, timeline, and environmental concerns, CJGeo and the general contractor determined that curtain grouting with geotechnical polyurethane was the best alternative to jet grouting. Fundamentally, curtain grouting effectively coats the backside of a wall or structure with plastic, kind of like a waterproofing membrane, but without having to excavate.
Working together, the solution was presented to the owner. The owner determined that the value engineer alternative was preferable to the original design based on:
- water quality risk management – CJGrout 22SHV is certified for potable water contact, and does not contain PFAS. CJGrout 22SHV does not contain any cement, which can quickly change the pH of water, affecting aquatic life
- top side footprint – no drilling equipment is needed in this case. This eliminates obstructions for the airfield operation, and eliminating surface disturbances and surcharge loads on the wall
- cost – the value engineer alternative was accompanied by a savings of approximately $1.7 million

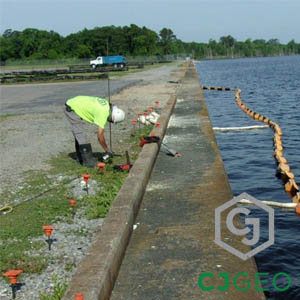

CJGeo mobilized a single polyurethane grouting crew to the site. Over a period of three months, CJGeo successfully performed the seawall curtain grouting work.
